0x01. NETCAT
J'utilise NCAT, le Netcat de l'équipe Insecure.org, les mêmes qui ont développés Nmap.
Cette version permet la multi-connexion et un nombre limité de connexions parallèles. C'est parfait pour l'usage qu'on va en avoir !
ncat -k -m 5 -l -p 4444 # -k : keep listening # -m : max-conns # -l : listen # -p : local port
Sur 6 autres terminaux, on va simuler des clients :
echo HELO1|ncat 127.0.0.1 4444 echo HELO2|ncat 127.0.0.1 4444 echo HELO3|ncat 127.0.0.1 4444 echo HELO4|ncat 127.0.0.1 4444 echo HELO5|ncat 127.0.0.1 4444
Parfait. Maintenant on initie un dialogue avec les 6, pour vérifier que le 6ème est bien rejeté.
ncat 127.0.0.1 4444 ncat 127.0.0.1 4444 ncat 127.0.0.1 4444 ncat 127.0.0.1 4444 ncat 127.0.0.1 4444 echo HELO6|ncat 127.0.0.1 4444
Dans le 6ème cas, la connexion n'est pas refusée mais le dialogue n'est pas possible, le ncat qui joue rôle de serveur ne répond pas.
0x02. LES LOGS
Pour faire un Honeypot digne de ce nom, nous allons capturer les paquets à destination des ports en écoute, et au format PCAP. Chaque agent NetCat loggera également les paquets reçus et la date à laquelle il se relance.
Le log sera structuré ainsi :
Numéro de port | Dernière IP capturée : Pays de l'adresse IP | Paquet reçus, envoyés | Dernier octets reçus
0x03. LE SCRIPT
Très perfectible. Son gros problème c'est sa consommation CPU.
#!/bin/bash APP="$(basename $0)" WAIT=20 LOGS="logs" DATA="data" PORTS="7 13 21 22 23 25 53 110 137 161 443 445 965 1433 3306 3389 5060 7070 8080 33445 49152 60010" ipcountry="$HOME/.local/scr/ip-country" renice -20 $$ [ $# -eq 0 ] && arg="start" [ $# -eq 1 ] && arg="$1" wait=$WAIT [ $# -eq 2 ] && wait="$2" if [ $# -eq 1 ] && [ "$1" = "-h" ] then echo " Usage: $APP [start|stop|clean] By default, start. " exit 0 fi _clean() { printf "\\n + Sending KILL signal to all 'tcpdump'..." killall -9 tcpdump >/dev/null 2>&1 printf "\\b\\b\\b, done." printf "\\n + Sending KILL signal to all 'netcat'..." killall -9 ncat >/dev/null 2>&1 printf "\\b\\b\\b, done." printf "\\n + Deleting IPtables rules..." for port in $PORTS do iptables -D INPUT -p tcp -m tcp --dport $port -j ACCEPT done >/dev/null 2>&1 ( iptables -D INPUT -m state --state RELATED,ESTABLISHED -j ACCEPT iptables -D OUTPUT -m state --state NEW,RELATED,ESTABLISHED,UNTRACKED -j ACCEPT ) >/dev/null 2>&1 } if [ "$arg" = "clean" ] then printf "\\nCleaning log and capture files..." printf "\\n=================================\\n" rm -fv $LOGS/*.* printf "\\nDone.\\n\\n" printf "\\nUnloading NetCat honeypot..." printf "\\n============================" _clean printf "\\b\\b\\b, done." for pid in $(ps aux|grep $APP|egrep -v "vim|$$|grep"|awk '{ print $2 }') do printf "\\n + Sending KILL signal to PID '$pid'..." kill -KILL "$pid" >/dev/null 2>&1 && printf "\\r + Sending KILL signal to PID '$pid', done." done printf "\\n\\n" exit 0 fi if [ "$arg" = "stop" ] then printf "\\nUnloading NetCat honeypot..." printf "\\n============================" for pid in $(ps aux|grep $APP|egrep -v "vim|$$|grep"|awk '{ print $2 }') do printf "\\n + Sending KILL signal to PID '$pid'..." kill -KILL "$pid" >/dev/null 2>&1 && printf "\\r + Sending KILL signal to PID '$pid', done." done _clean printf "\\b\\b\\b, done.\\n\\n" exit 0 fi if [ "$arg" = "start" ] then printf "\\nLoading NetCat honeypot..." printf "\\n==========================\\n\\n" mkdir -p "$LOGS" mkdir -p "$DATA" RAW="/dev/urandom" echo " + Blocking INPUT packet by default" iptables -P INPUT DROP for port in $PORTS do echo " > $port" while true do ( ok=1 netstat -lntp|grep ":$port " >/dev/null 2>&1 && ok=0 if [ $ok -eq 1 ]; then kill -KILL "$(ps aux|grep tcpdump|grep -v grep|grep tcpdump|grep "port $port"|awk '{ print $2 }')" iptables -D INPUT -p tcp -m tcp --dport $port -j ACCEPT sleep 1 iptables -I INPUT -p tcp -m tcp --dport $port -j ACCEPT printf "\\n\\n\\n" >> $LOGS/$port.log echo "%% $(date) %%" >> $LOGS/$port.log echo "%% ------------------------------------- %%" >> $LOGS/$port.log ( tcpdump -A -vv -e -f -H -K -l -p "port $port" -w $LOGS/$port.pcap & ) >/dev/null 2>&1 cat "$RAW"|ncat -vv -klp $port 2>&1 >> $LOGS/$port.log printf "\\n\\n\\n" >> $LOGS/$port.log fi ) >/dev/null 2>&1 done & done echo " + Allowing statefull inspected packet" iptables -I INPUT -m state --state RELATED,ESTABLISHED -j ACCEPT iptables -I OUTPUT -m state --state NEW,RELATED,ESTABLISHED,UNTRACKED -j ACCEPT printf "\\nDone.\\n\\n" fi if [ "$arg" = "monitor" ] then while true do clear printf -- "\\nMonitoring, $(date) :" printf "\\n==========================================\\n\\n" printf "\\nProcess = tcpdump: $(ps aux|grep -v grep|grep -c tcpdump)" printf ", ncat: $(ps aux|grep -v grep|grep -v $APP|grep -c ncat )\\n" for port in $PORTS do [ ! -f "$LOGS/$port.log" ] && continue # logfilesize=$(ls -l $LOGS/$port.log|awk '{ print $5 }') pkts=$(iptables -v -L -n|grep ":$port$"|awk '{ print "sent: "$1", received: "$2 }') lastlinelog=$(strings "$LOGS/$port.log"|\\ egrep -o "^%% [A-Z][a-z][a-z] [A-Z0][a-z][a-z] [0-2][0-9] ([0-2])?[0-9]:([0-6])?[0-9]:([0-6])?[0-9] ... 20.. %%$" |\\ tail -n1|\\ sed 's/%%//g') lastip=$(tcpdump -n -r $LOGS/$port.pcap 2>&1|grep ".$port > "|\\ awk '{ print $5 }'|\\ cut -d'.' -f1,2,3,4|\\ tail -n1) [ ! -z "$lastip" ] && lastipcountry=$($ipcountry $lastip) [ -z "$lastip" ] && lastipcountry='' lastpacket=$(hexdump -C "$LOGS/$port.pcap"|tail -n2|head -n1) netstat -lntp|grep ":$port " >/dev/null 2>&1 || continue printf -- "\\n%-5s \\t | Last IP: %-15s, country: %-20s \\t | Packets %-30s \\t |" printf -- " Last bytes: \\`%s\\`" "$port" "$lastip" "$lastipcountry" "$pkts" "$lastpacket" done sleep $WAIT done fi

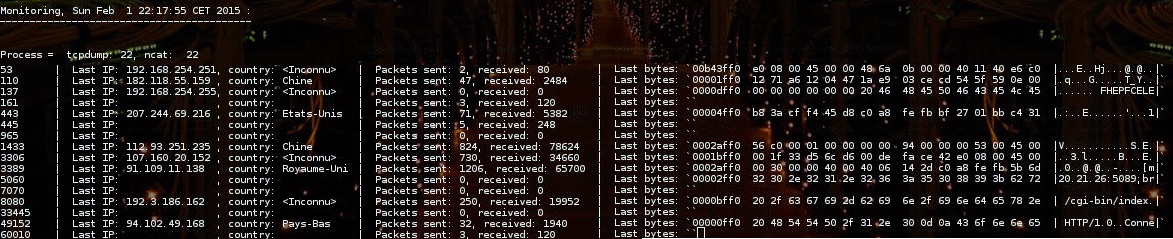

0x02. APERCU

Le rendu a été tronqué pour optimiser le rendu sur la page
=> Écrit par : Nicolas, le 29 janvier 2015
